Uploading files

Users that holds an ega-box-XXX account can upload files using either INBOX or FTP. Users who have a Submitter role associated with their email will only be able to upload files using INBOX.

Before uploading your files please make sure that any files that will be uploaded to EGA do not use special characters in their naming convention such as # ? ( ) [ ] / \ = + < > : ; " ' , * ^ | &. This can cause issues with the archiving process, leading to problems for end users.

The EGA is a shared, public service with limited storage. In order to manage the available resources, we enforce a limit of 10Tb per submission account at any one time. Please do not exceed this limit.

The FTP is only compatible with files encrypted using the EGACryptor tool

Before uploading

Once your submission files have been prepared using the EGAryptor, the resulting encrypted files and associated md5sum files can be uploaded to your submission account using Aspera or FTP.

The EGA is a shared, public service with limited resources. In order to manage the available resources, EGA submission boxes should not exceed 8Tb in size, and cannot exceed 12Tb. If you are approaching this limit please contact contact EGA Helpdesk so that we can advise on how to register the associated metadata and trigger the archiving of files, so that you can continue with your submission. If we note that your submission account increases above 10Tb on a consistent base your password will be changed until metadata is associated.

Aspera

Download Aspera

Using Aspera

FTP

FTP windows

FTP Linux / Unix

FTP client (Filezilla)

FTP and TLS

Troubleshooting

Troubleshooting

Aspera Download

Aspera is a commercial file transfer protocol that may provide faster transfer speeds than ftp especially over longer distances.

The Aspera ascp command line client. Please select Aspera Connect.

The ascp command line client is distributed as part of the aspera connect highperformance transfer browser plugin and is free to use, without registration.

The minimum required version of the IBM Aspera Cli is V4. Further instructions.

Using the Aspera ascp command line program

The location of the ascp program in the filesystem:

  • Mac: on the desktop go cd /Applications/Aspera\ Connect.app/Contents/Resources/ there you'll see the command line utilities where you're going to use ascp.
  • Windows: the downloaded files are a bit hidden. For instance, in Windows 7 the ascp.exe is located in the users home directory in: AppData\Local\Programs\Aspera\Aspera Connect\bin\ascp.exe
  • Linux: should be in your user's home directory, cd /home/username/.aspera/connect/bin/ there you'll see the command line utilities where you're going to use ascp.

Your command should look similar to this:

ascp -P33001 -O33001 -QT -l300M -L- /path/file ega-box-N@fasp.ega.ebi.ac.uk:/path

If you wish to upload several files without being requested the password, please use the below command :

ASPERA_SCP_PASS=ega-box-password ascp -P33001 -O33001 -QT -l300M /path/file ega-box-N@fasp.ega.ebi.ac.uk:/path/

Explanation of parameters

Check the command line transfer usage for more configuration details.

Using FTP to upload your prepared files

  1. Use your preferred ftp client. For example, lftp is a popular choice for Linux and Mac users.
  2. Use binary mode for file transfers.
  3. Use ftp.ega.ebi.ac.uk as the target host.
  4. Login with your ega-box username and password.
  5. Upload files to your private ega-box upload area.

Depending on your network setting you might wish to start FTP in passive or active mode.

Using default FTP command line client in Windows

  1. Start the command line interpreter: press WinR, type cmd, hit enter
  2. Enter ftp ftp.ega.ebi.ac.uk
  3. Enter your submission username
  4. Enter your submission password
  5. Type binary to enter binary mode for transfer
  6. To see a list of available ftp commands type help.
  7. Type ls command to check the content of your submission account.
  8. Type prompt to switch off confirmation for each file uploaded.
  9. Use mput command to upload files: mput *.bam*
  10. Use bye command to exit the ftp client.
  11. Use exit command to exit the command line interpreter.

Using default FTP command line client in Linux / Unix

  1. Open a terminal and type ftp ftp.ega.ebi.ac.uk
  2. Enter your submission username
  3. Enter your submission password
  4. Type binary to enter binary mode for transfer
  5. To see a list of available ftp commands type help.
  6. Type ls command to check the content of your submission account.
  7. Type prompt to switch off confirmation for each file uploaded.
  8. Use mput command to upload files: mput *.bam*
  9. Use bye command to exit the ftp client.

Using FTP client FileZilla

We recommend the use of FileZilla, a free FTP client . FileZilla is open source software distributed free of charge under the terms of the GNU General Public License.

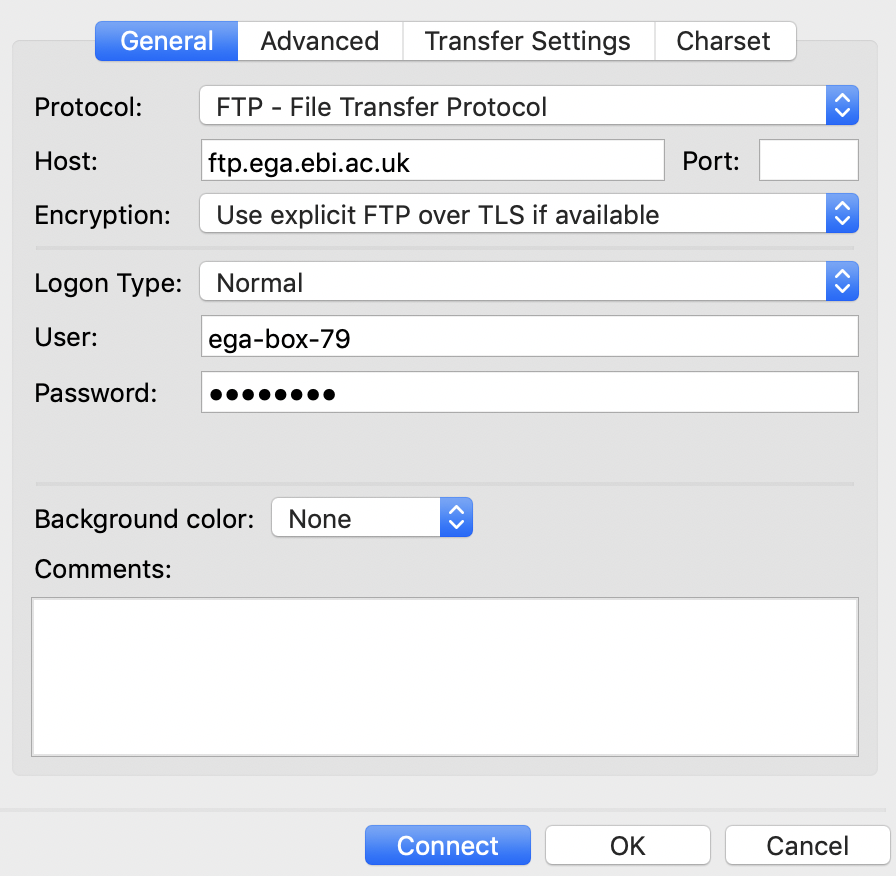

Use the following connection details (File - Site Manager) and add yoursubmission account username and password:

Using FTP client FileZilla

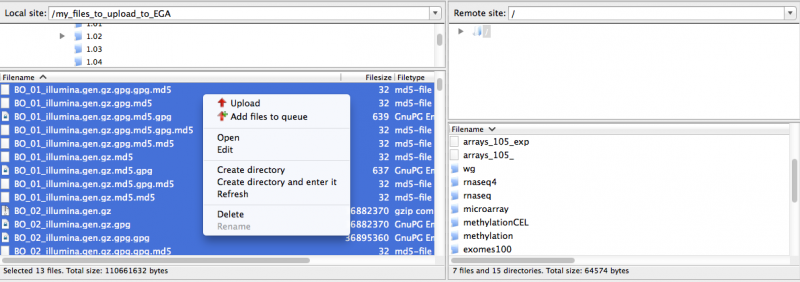

Select the files you wish to upload and then select upload:

Using FTP client Filezilla

Using LFTP with TLS

We recommend the following to force the use of a secure connection.

lftp > set ftp:ssl-force yes

We also recommend setting the following for not encrypting the bulk data itself for performance reasons (theauthentication will still be encrypted):

lftp > ftp:ssl-protect-data no

In order to verify the certificate,the recommended way would be to use the CA certificates from your machine. To do that use this command in lftp adjusting the path to your ca-certificates location.

lftp > ssl:ca-file "/etc/ssl/certs/ca-certificates.crt"

If that is not possible or certificates are old and you can't update them, you can download the certificates needed from Quo Vadis Digital Repository

The two certificates to download in PEM format are:

Then you can concatenate them in a file one after the other and save it as lftp-certificates.pem

Once this is done you have to point the ssl:ca-file variable to the path

lftp > set ssl:ca-file "/path/to/lftp-certificates.pem"

Also note that you can save this configuration at ~/.lftp/rc

Another option is to download the certificates and add them to the ca-certificates of your machine. For example: In RHEL7 and cenots and others box the process to add the certificates globally is:

Another less secure option is to turn off certificate verification with the following command:

lftp > set ssl:verify-certificate false

Troubleshooting

If you are having problems with Aspera connection timeouts, it can be down to either one of the following.

Transfers cannot start the connection fails instantly.

Ensure that TCP traffic on port 33001 is allowed (open) for outbound connections through your computer's firewall and network's firewall.

The connection is made, transfers are started, but 0 bytes (0%) are uploaded for each file.

Ensure that UDP traffic on port 33001 is allowed (open) for outbound connections through your computer's firewall and network's firewal
